CRUX Rip-Out Diaphragms

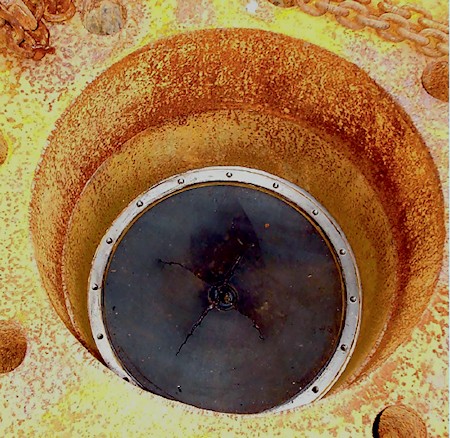

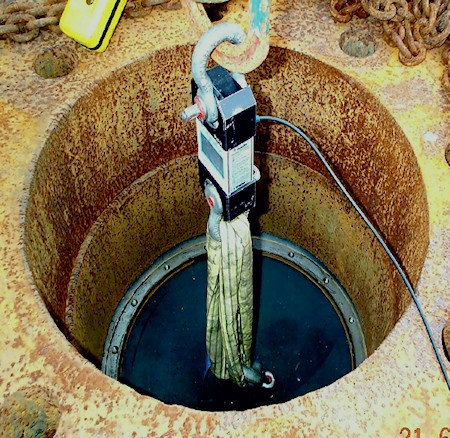

In certain circumstances Crux Rip-Out Diaphragms may be specified. These buoyancy diaphragms have an integral cutting tool attached which pierces the diaphragm when activated by means of wire rope rigging from the surface.

Rip-Out Diaphragms
Rip-Out Diaphragms

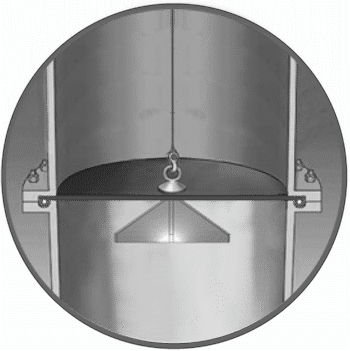

The function of Rip-Out Diaphragms is to accentuate the flooding of previously sealed jacket members or buoyancy tanks, by pulling a cruciform cutter through the diaphragm.
